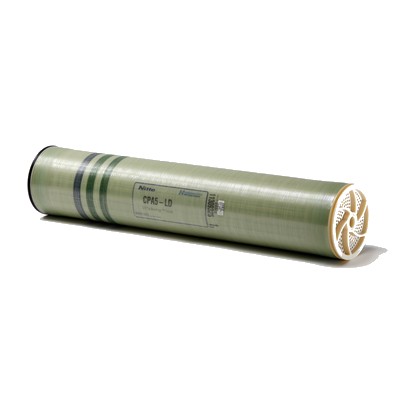

Hydranautics Brackish RO Membrane CPA5-LD

Material: W2T332820 Unit of Measure #: EA See All 8" Brackish Membranes

Hydranautics CPA5 membranes set the standard for high performance RO membrane elements.

List Price
${{finalPrice | intlNumber('en-EN','USD')}}
  • 0 is the minimum order quantity for this product. Please check quantity and add to cart again.
  • Model Name: CPA5-LD
  • Length: 40"
  • Diameter: 8"
  • Weight: 40 lbs
  • Feed Spacer: 34 mil
  • Active Membrane: 400 ft²
  • Membrane Type: Low Fouling Thin Film Composite
  • Operating Pressure: 225 PSI
  • Maximum Pressure: 600 PSI
  • Permeate Flow Rate: 11,000 GPD
  • Nominal Salt Rejection: 99.7%
Discontinued product
evoqa

Hydranautics CPA5 membranes set the standard for high performance RO membrane elements.

List Price
${{finalPrice | intlNumber('en-EN','USD')}}
  • Model Name: CPA5-LD
  • Length: 40"
  • Diameter: 8"
  • Weight: 40 lbs
  • Feed Spacer: 34 mil
  • Active Membrane: 400 ft²
  • Membrane Type: Low Fouling Thin Film Composite
  • Operating Pressure: 225 PSI
  • Maximum Pressure: 600 PSI
  • Permeate Flow Rate: 11,000 GPD
  • Nominal Salt Rejection: 99.7%
Discontinued product

Image Gallery

Description

CPA5-LD features Hydranautics LD Technology, a high performance RO technology that helps reduce fouling from colloidal particles and biological growth. LD Technology uses proprietary feed spacers to reduce bio-growth (NSF 61 approved for drinking water). This innovative feed spacer design prevents trapping of small colloidal particles and improves the effectiveness of cleanings.

Product Information

Legacy Part Number

CDHYCPA5LD

Specifications

  • Maximum Operating Temperature: 113F (45C)
  • Chlorine Tolerance: 0. 1 PPM
  • pH Range, Continuous Operation: 2-11
  • pH Range, Short Term Cleaning (30min): 1-13
  • Maximum Feed Water Turbidity (NTU): 1
  • Maximum Feed Water Silt Density Index (SDI): 5
  • Maximum Pressure Drop For Each Element: 10 psi
  • Maximum Feed Flow: 75 GPM

Specs

Brand
  • HYDRANAUTICS
Membrane Application
  • Brackish
Membrane Size
  • 8"
Membrane Type
  • RO
